40361-11 Double Stud 5/16" Fitting
Dimension(s) for this product
Lead Time to Ship: 3 Business Days Ships In: Flat Pack Shipping From: US-CA, Chico
All Material is supplied with full traceability per AS9100 and ISO 9001:2015
Couldn't load pickup availability
Ready to work out of the box!
All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!
Got questions?
Feel free to get in touch
Ask an expert!

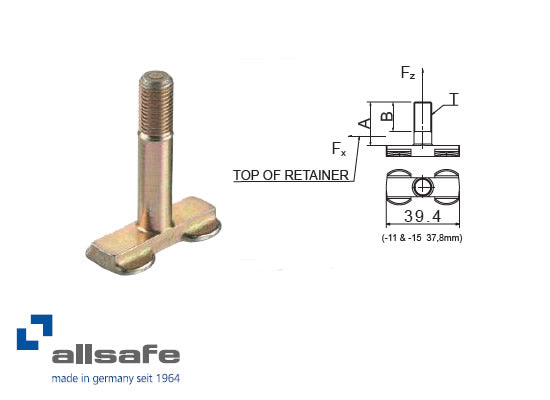

Dimension: A = 22.9mm B = 20.8mm T = 5/16-24
Forged steel, and heat-treated and zinc-plated
Thread: 5/16-24 UNJF-3A
Ultimate load: *
FX > 24.0 kN/ 5400 lbf
FY > 24.0 kN/ 5400 lbf
FZ > 28.9 kN/ 6500 lbf
Material: Forged steel, heat-treated and zinc-plated
Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.
There is €4.99 charge for delivery under €50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
All material supplied by Aircraft Extrusion Company is certified for aircraft and aerospace use. All material is supplied with certification per our AS9100 and ISO9001:2015 Quality system with Certificate of Conformance and Mill Test Report providing full traceability.
Product Details, Specifications, and Technical Information
What can we write in here ???
| Dimension Name | Specification |
|---|---|
| Shape | 40361-11 Double Stud 5/16" Fitting |
| Material | Tracks & Fittings |
| Specification | Please Specify |
| Ships | 1–3 Business Days |
| Brand | Aircraft Extrusion Co |
